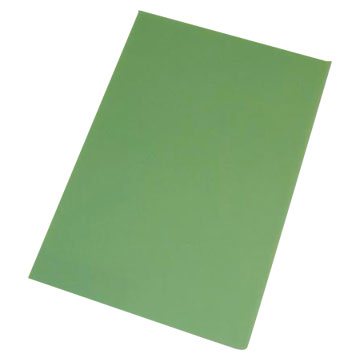

FR-5 Laminated Sheet

1.Materials and application:

FR5 is a stratified insulator made from fibre glass fabric and epoxy resin.

It is similar as G11, but with flammability FV0.

It is use for equipment on high frequencies and generally for all elements having to bear strong dynamic stresses with good resistance to fatigue.

It's can be used at fairly high temperatures ( more than 155 oC ).



2.Feature:

-Very low hygrometric susceptibility.

-Good dielectric properties

-Small losses at high frequency

-Workable while cold up to 3mm. thickness

-Excellent mechanical properties when cold

-Very good resistance to the formation of conductive prints

-Fewer losses of mechanical properties than the type 3240 when work at 155oC



3.We can provide:

-Thickness:0.5~100mm.

-Size:1020*1220 /1020*2040/1220*2440mm.

-Color:nature/light green.



For detailed  technical information,please check files in download section.
